Dekabon Tubing, also known as Synflex 1300 Tube, Eaton 1300, or Maluform Metal/Plastic Composite Tubing, is a high-performance malleable metal tubing coated in a durable HDPE cover. Designed to withstand a working pressure of 10 Bar, this tubing is ideal for a wide range of industrial applications.

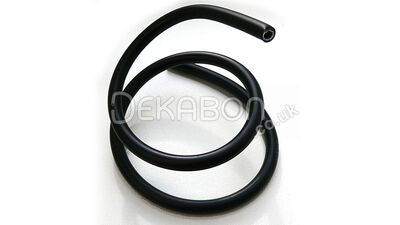

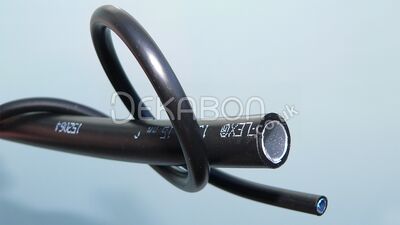

Often referred to as "Stay Put" tubing due to the ability to hold its shape when bent and positioned, this feature makes the Dekabon tube extremely useful for delicate or sensitive applications.

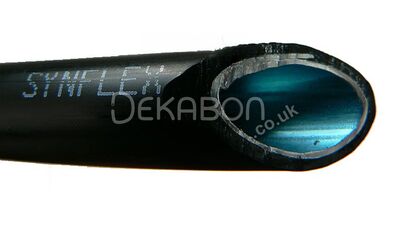

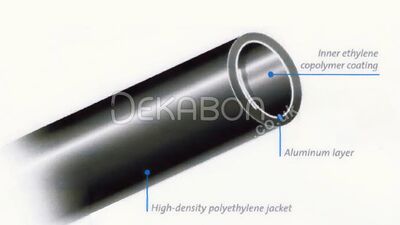

The Dekabon Tubing features an inner layer of aluminium with an ethylene copolymer coating, ensuring durability and resistance to harsh environments. The outer cover is made from a thick layer of high-density polyethylene (PE), providing additional protection and flexibility.
Suitable for temperatures ranging from -40°C to 80°C (-40°F to 176°F), making it versatile for various industrial conditions.
For more detailed technical information, please download the datasheet below.
| Part | Outer Diameter | Inner Diameter | Wall Thickness mm | Burst Pressure bar | Weight g/m |
|---|---|---|---|---|---|
| Part | O.D. | I.D. | Wall mm | B.P. bar | Mass g/m |
| DEK06 | 6mm | 4mm | 1.00 | 115 | 20 |
| DEK08 | 8mm | 5.3mm | 1.35 | 115 | 32 |
| DEK10 | 10mm | 6.3mm | 1.85 | 115 | 57 |
| DEK12 | 12mm | 8.13mm | 1.94 | 98 | 75 |
| DEK14 | 14mm | 9.75mm | 2.13 | 98 | 96 |
| DEK15 | 15mm | 10.8mm | 2.13 | 65 | 106 |
| DEK1/4 | 1⁄4″ | 0.170″ | 1.02 | 115 | 24 |
| DEK3/8 | 3⁄8″ | 1⁄4″ | 1.57 | 115 | 52 |
| DEK1/2 | 1⁄2″ | 3⁄8″ | 1.57 | 70 | 73 |
